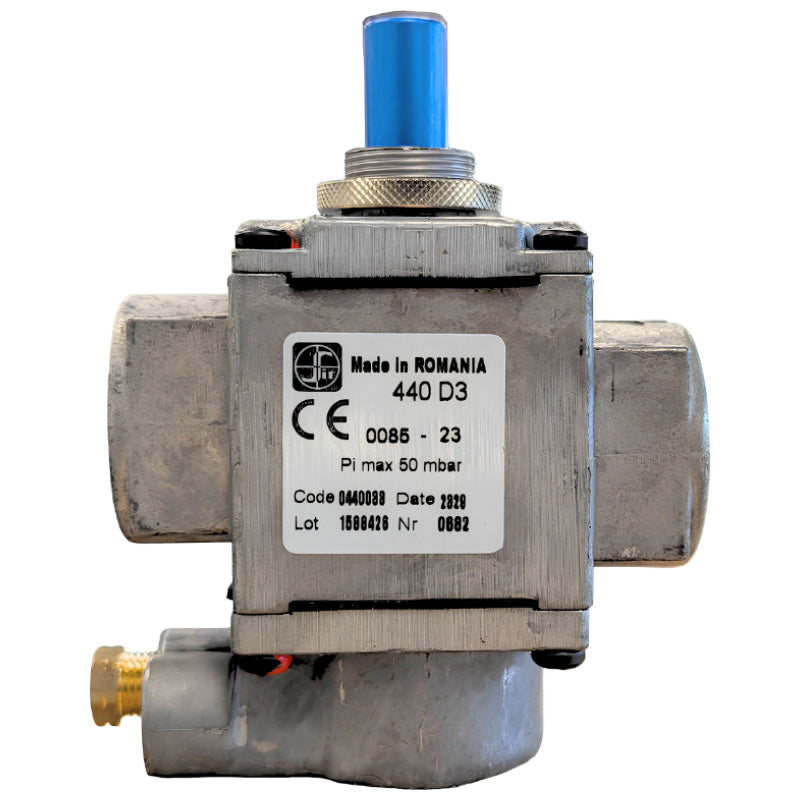

SIT D3 Thermoelectric Flame Failure Valve 3/4" (Nut included) – Suits Commercial Gas Appliances (0.440.033)

SIT D3 Thermoelectric Flame Failure Valve 3/4" (Nut included) – Suits Commercial Gas Appliances (0.440.033)

The SIT 440 D3 is a heavy-duty manual thermoelectric flame failure safety valve designed for commercial gas cooking equipment, industrial heaters, and high-output gas appliances. Operating as a critical safety mechanism, the valve keeps the main gas supply strictly closed until an attached thermocouple senses a stable pilot flame. If the pilot flame extinguishes, the valve automatically cuts off the gas supply instantly to prevent hazardous leaks.

Features:

• SIT 440 D3 thermoelectric flame failure valve
• Rp3/4 inlet and outlet, 20mm
• Thermocouple connection M9x1, inline with gas flow
• Pilot outlet 1/4 inch with shear off nut and flow adjustment screw
• M18x1 thread under push button
• Maximum inlet pressure 50mbar
• Ambient temperature 0 to 80 degrees
• Natural gas and LPG
• Cross reference 0440033
