Quartz Infrared Heat Lamp 500W 120V 170mm – Metal End Caps (Attached Leads)

Quartz Infrared Heat Lamp 500W 120V 170mm – Metal End Caps (Attached Leads)

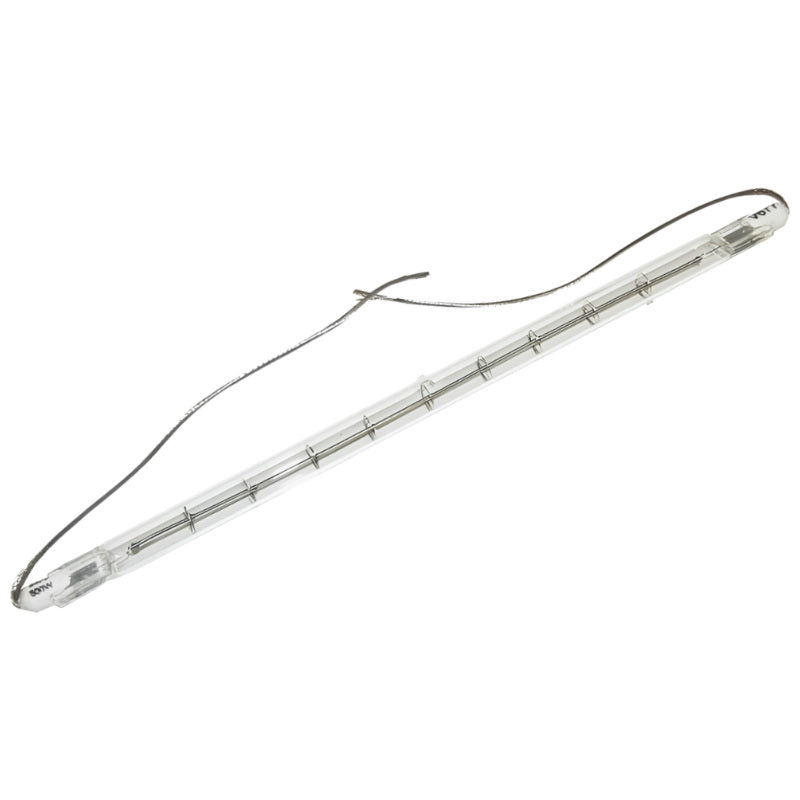

This quartz infrared heat lamp is a 500W 120V replacement for bain maries, food warmers and heated display units. It has a clear quartz tube with metal end caps and wire leads fitted to each end for direct connection to terminals.

As a 120V lamp, it is made for series wiring, normally in pairs across a 240V supply. Do not connect a single lamp directly to 240V. It measures 170mm overall with a 10.5mm tube, so compare the voltage and length with the old lamp before ordering.

Features:

• Clear quartz infrared heat lamp
• 500W, 120V
• Series wiring in pairs on 240V
• 170mm overall length
• 10.5mm tube diameter
• Metal end caps
• Wire leads approximately 97mm each end
• Horizontal burning position
• Suits bain maries, food warmers and heated displays
