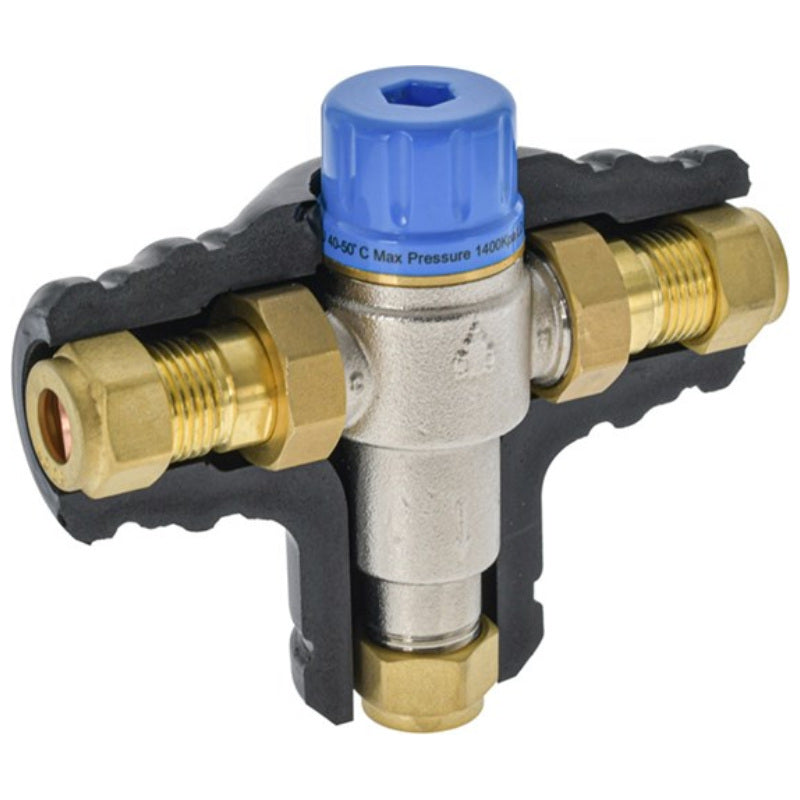

Logi Valve Tempering Valve 15mm (Lead Free)

Logi Valve Tempering Valve 15mm (Lead Free)

The Logi Valve Tempering Valve blends hot and cold water to deliver a controlled outlet temperature for personal hygiene applications. Manufactured from Lead‑Free brass, it includes integral strainers and non‑return valves, tamper‑proof adjustment, and high‑performance polymer internals for improved resistance to calcium build‑up. The valve is factory set to 50°C and must be commissioned on site. Fully WaterMark approved and certified to AS 4032.2, it is supplied with an insulation jacket compliant with AS 3500.

Features:

• Tempering valve
• 15mm connections
• Lead‑Free brass body
• Integral mesh strainers & non‑return valves
• Tamper‑proof adjustment
• Factory set 50°C (commissioning required)
• Temperature ranges: Cold 5–30°C | Hot 60–90°C | Outlet 40–50°C (±3°C)
• Minimum hot–outlet differential: 15°C
• Working pressure: 1400 kPa (static) | 500 kPa (dynamic)
• Pressure limits: ±10% supply variation | 2:1 supply differential max
• Minimum flow rate: 3.6 L/min @ 10 kPa
• WaterMark Approved
• Certified to AS 4032.2
• Insulation jacket included (AS 3500 compliant)
