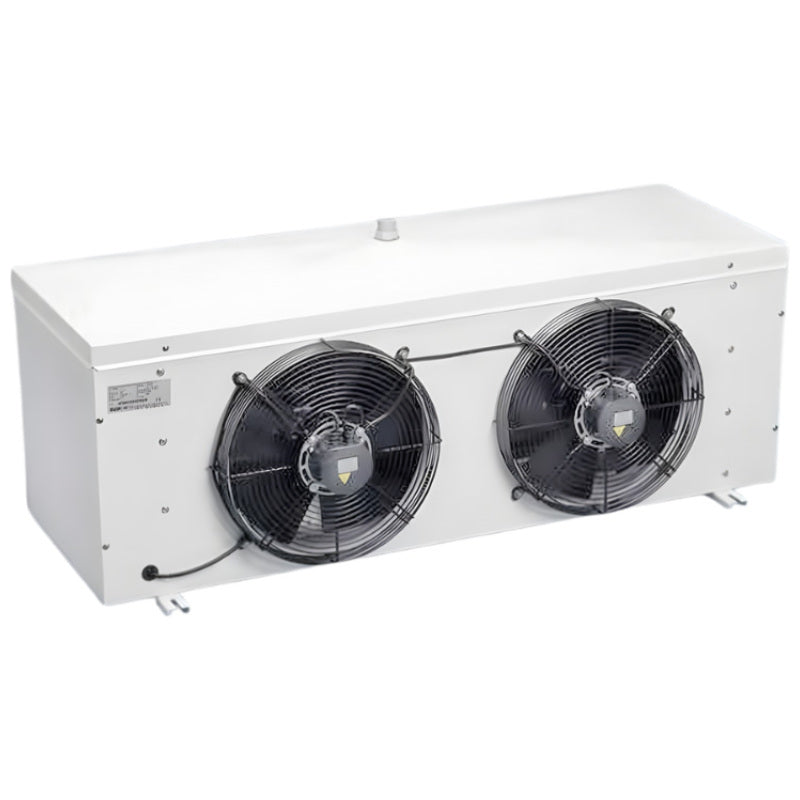

Evaporator Unit 3.0kW (Mid Temp) IDH-3/15

Evaporator Unit 3.0kW (Mid Temp) IDH-3/15

The IDH-3/15 evaporator unit from the ICEAGE IDH Series is engineered for medium-temperature refrigeration applications. With a 3.0kW cooling capacity and dual axial fans, it provides efficient air distribution and reliable performance in commercial cold rooms, food storage, and processing environments. Designed for ambient conditions up to +32°C and evaporating temperatures around 0°C, this unit ensures consistent cooling and dependable operation.

Features:

• Cooling capacity of 3.0kW at 0°C evaporating temperature
• Heat exchange surface area of 15m² for effective thermal transfer
• Dual 300mm axial fans delivering 3126 m³/h airflow
• Fin spacing of 4.5mm optimized for mid-temperature refrigeration
• Inlet/outlet pipe size: 12mm – 14mm for standard connections
• Defrost heaters rated at 900W for both fin and tray sections
• Compact dimensions: 1280mm length x 420mm width x 475mm height
• Suitable for cold rooms, food storage, and mid-temp refrigeration systems
