Evaporator Unit 2.1kW (Low Temp) IDM-2.1/12

Evaporator Unit 2.1kW (Low Temp) IDM-2.1/12

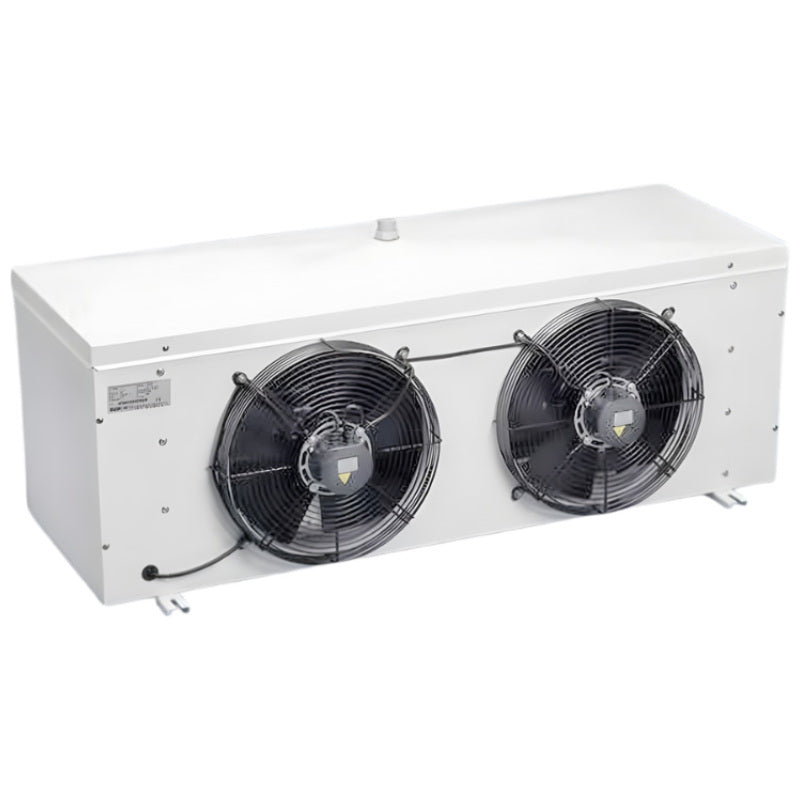

The IDM‑2.1/12 evaporator from the ICEAGE IDM Series is engineered for low‑temperature refrigeration systems. With a 2.1kW cooling capacity and dual axial fans, it provides efficient airflow and reliable cooling performance. Designed for evaporating temperatures around ‑20°C and ambient conditions up to +32°C, this unit is ideal for commercial cold rooms, food storage, and processing environments.

Features:

• Cooling capacity of 2.1kW at ‑20°C evaporating temperature
• Heat exchange surface area of 12m² for effective thermal transfer
• Dual 300mm axial fans delivering 3126 m³/h airflow
• Fin spacing of 6.0mm optimized for mid‑temperature refrigeration
• Inlet/outlet pipe size: 12mm – 14mm for standard connections
• Defrost heaters rated at 900W for both fin and tray sections
• Electrical input power of 150W
• Compact dimensions: 1280mm length x 420mm width x 475mm height
• Suitable for low‑temperature cold rooms and food storage systems
