Evaporator Unit 1600W (Mid Temp) IDH-2 Series

Evaporator Unit 1600W (Mid Temp) IDH-2 Series

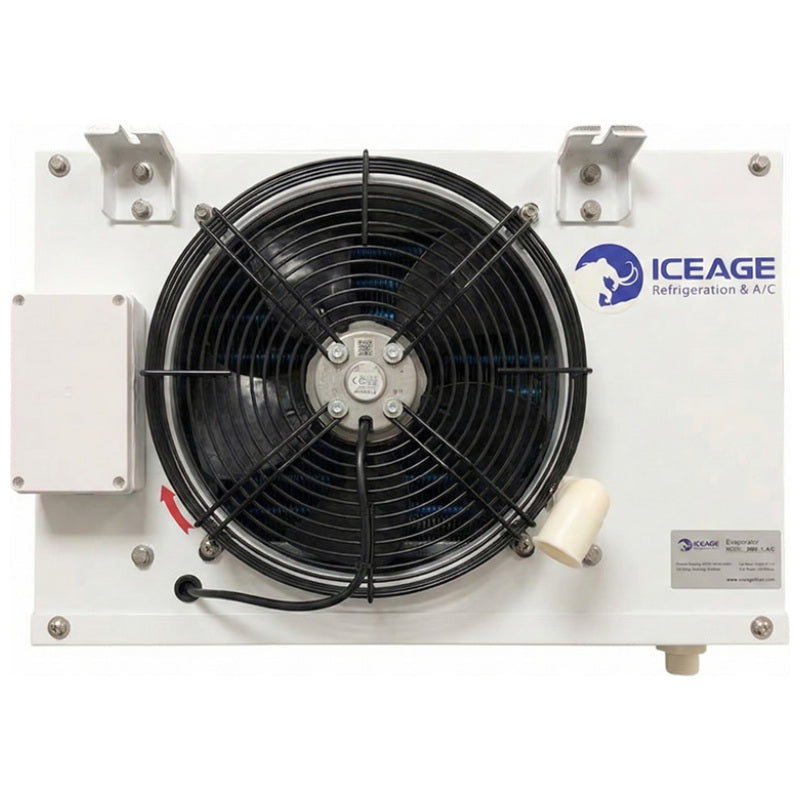

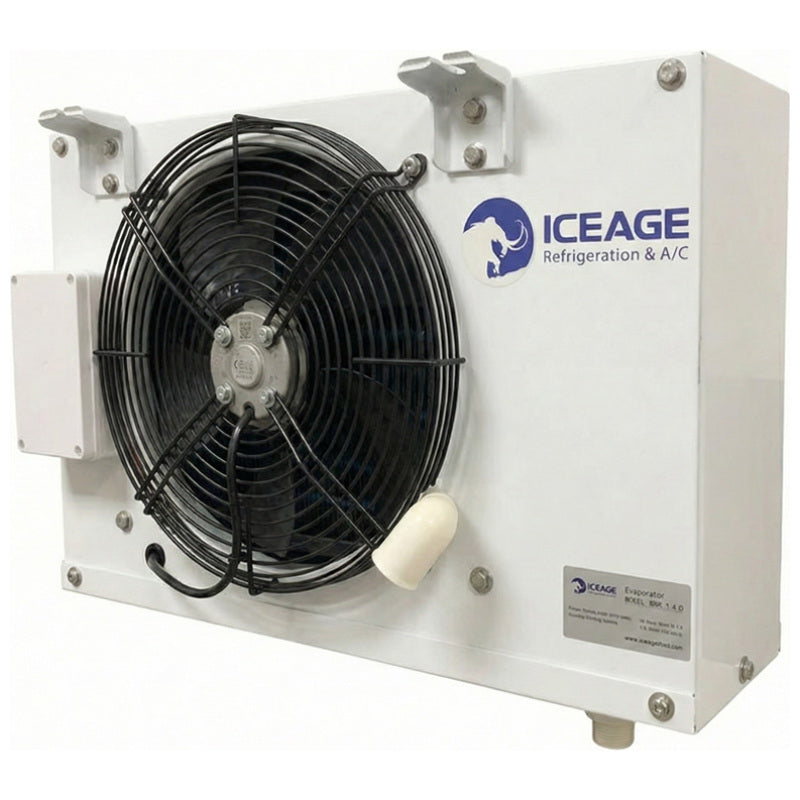

The IDH-2 evaporator unit from the ICEAGE IDH Series is engineered for medium-temperature refrigeration applications. With a 1.6kW cooling capacity and single 300mm axial fan, it provides efficient air distribution and reliable performance in commercial cold rooms, food storage, and processing environments. Designed for ambient conditions up to +10°C and evaporating temperatures around 0°C, this unit ensures consistent cooling and dependable operation.

Features:

• Cooling capacity of 2.0 kW at 0 °C evaporating temperature
• Heat exchange surface area of up to 6-8 m² for effective thermal transfer
• Single 300 mm axial fan delivering (approx) 1560 m³/h airflow
• Fin spacing of 4.5 mm optimized for mid‑temperature refrigeration
• Inlet/outlet pipe size: 10 mm – 12 mm for standard connections
• Defrost heaters rated at 300-400 W for both fin and tray sections
• Compact dimensions: 610 mm length × 255 mm width × 400 mm height
• Suitable for cold rooms, food storage, and mid‑temp refrigeration systems
