Dual Pressure Switch SPDT (Auto + Manual Reset) – Low & High Regulation

Dual Pressure Switch SPDT (Auto + Manual Reset) – Low & High Regulation

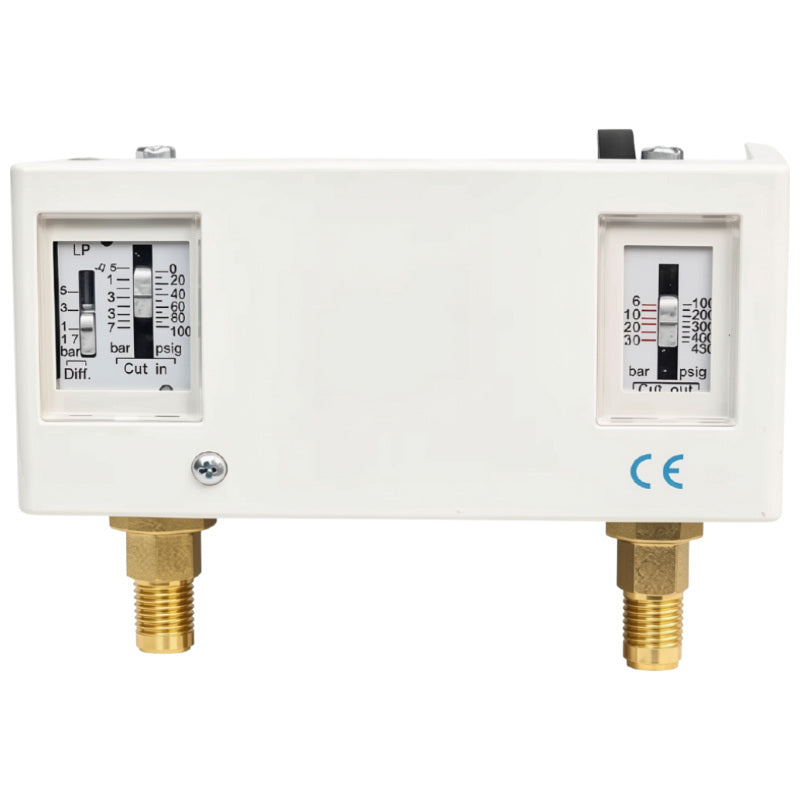

This dual pressure switch is designed for systems requiring independent low pressure and high pressure regulation within a single control unit. The left side provides an adjustable range from minus 0.50 bar to 7.00 bar with a selectable differential for low pressure control, while the right side covers 6.0 bar to 32.0 bar with a fixed differential for high pressure protection. The SPDT contact arrangement supports reliable switching for compressor, pump and general pressure control applications. Suitable for refrigeration, HVAC and fluid systems where combined pressure management is required.

Features:

• Regulation left side -0.50 bar to 7.00 bar
• Regulation right side 6.0 bar to 32.0 bar
• Differential left side 0.50 bar to 5.00 bar
• Differential right side 4.0 bar
• Contact function SPDT
• Reset function left side auto
• Reset function right side manual
• Dual pressure regulation
• Suitable for refrigeration and HVAC systems
