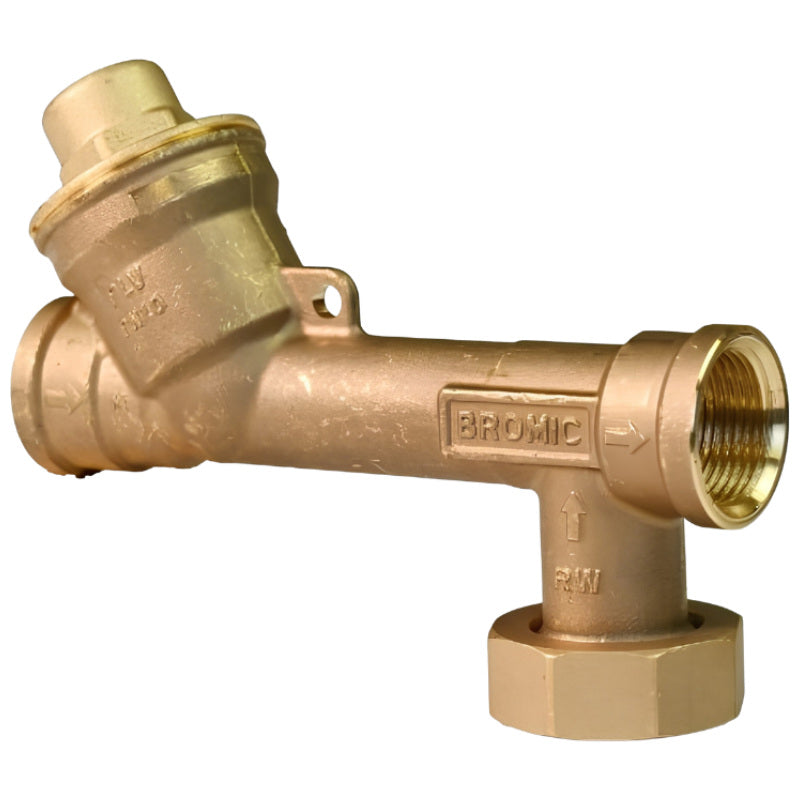

Bromic Waterboy Hydro Switch Rain to Mains Changeover Valve

Bromic Waterboy Hydro Switch Rain to Mains Changeover Valve

The Bromic Waterboy Hydro Switch Rain to Mains Changeover Valve provides automatic diversion between rainwater supply and mains water when connected to a compatible Waterboy jet pump and controller. Its hydraulic design requires no electrical components, improving reliability in domestic and commercial installations. The valve includes an integrated pressure‑limiting function, meets NCC lead‑free requirements, and is WaterMark approved for potable water use.

Features:

• Automatic switchover from rainwater tank to mains
• Hydraulic design with no electrical components
• Low‑lead brass construction
• Integrated 200kPa pressure‑limiting valve
• Compatible with Waterboy jet pumps and 3kW controller
• Supports 40L, 50L and 60L pumping capacities
• Nominal flow rate 50L/min
• Max mains pressure 1000kPa
• Minimum pump pressure 200kPa
• Maximum water temperature 40°C
• 3/4" G mains inlet, 1" G rainwater inlet, 3/4" G outlet
• Dimensions 162W × 56H × 157D mm
• Weight 2.2KG
