Ignition Control Unit — Suits Wall Furnaces WF25, PWF30 & PWF40 (628608)

Ignition Control Unit — Suits Wall Furnaces WF25, PWF30 & PWF40 (628608)

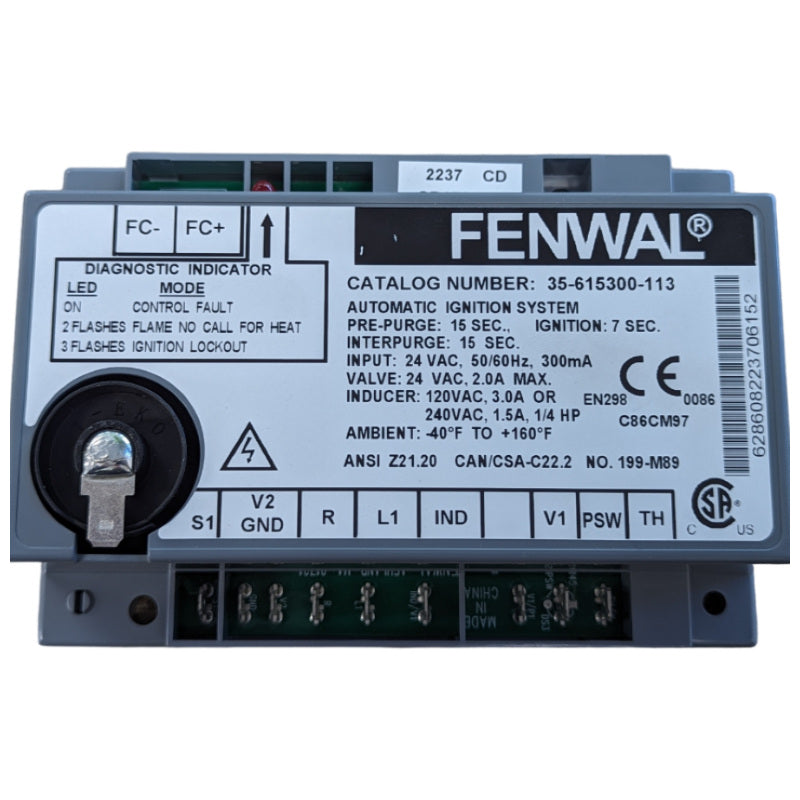

This ignition control unit is used in selected Braemar wall furnaces to manage spark ignition, flame sensing and burner safety functions. Operating on 24V, it controls the full ignition sequence including pre purge, trial for ignition and lockout timing. Supplied as Braemar part number 628608, it is built to the Fenwal 35‑615300‑113 specification and provides reliable operation in high temperature heater environments.

Features:

• Controls spark ignition and flame sensing
• Manages pre purge ignition and lockout timing
• Diagnostic LED for fault indication
• 24V operation for heater control circuits
• Suits Braemar WF25 PWF30 and PWF40 wall furnaces
• Durable construction for heat and electrical load
• Braemar part number 628608
• Fenwal model 35‑615300‑113
