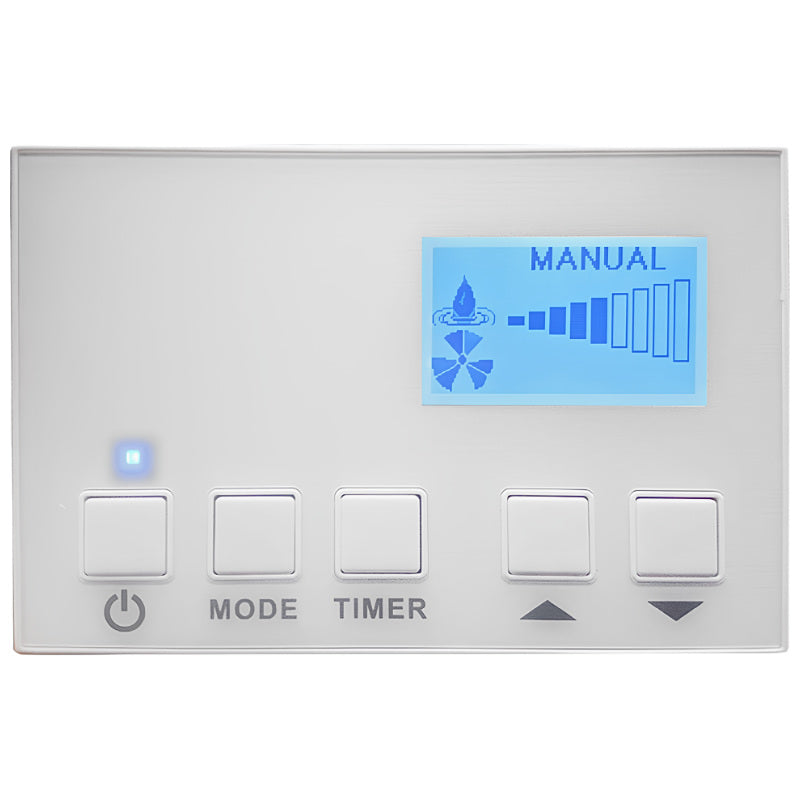

Bonaire TEK700 Series Non Programmable Digital Thermostat 24V Heat & Cool (CT‑TEK7DAT)

Bonaire TEK700 Series Non Programmable Digital Thermostat 24V Heat & Cool (CT‑TEK7DAT)

The TEK7DAT is an original Bonaire digital thermostat designed for TEK700 Series platforms. It provides a clean LCD interface with manual set‑level control, heat and cool operation, and simple low‑voltage installation using the existing 5‑pin loom found on earlier TEK‑series wall controls. The TEK7DAT offers a modern digital upgrade path for older analogue and early digital Bonaire controllers, delivering reliable operation across both evaporative cooling and ducted heating systems when paired with compatible control boxes.

Features:

• Full graphic LCD display
• Room temperature measurement with optional on‑screen display
• Manual operation (non‑programmable)
• Set‑level adjustment via Up and Down buttons
• Timer function for delayed on/off operation
• Auto Cooling, Manual Cooling and Fan modes
• Built‑in Pre‑Wet control
• Blue LED indicator above the power button
• Analogue output control for cooler operating mode
• Operates on 24V AC low‑voltage control
• Uses existing 5‑pin loom for simple installation
• Digital replacement for legacy TEK‑series analogue and early digital controls

Suits Models:

TEK7EC, TEK600, TEK632, TEK400, TEK425, TEK485, TEK7DT, TEK285
