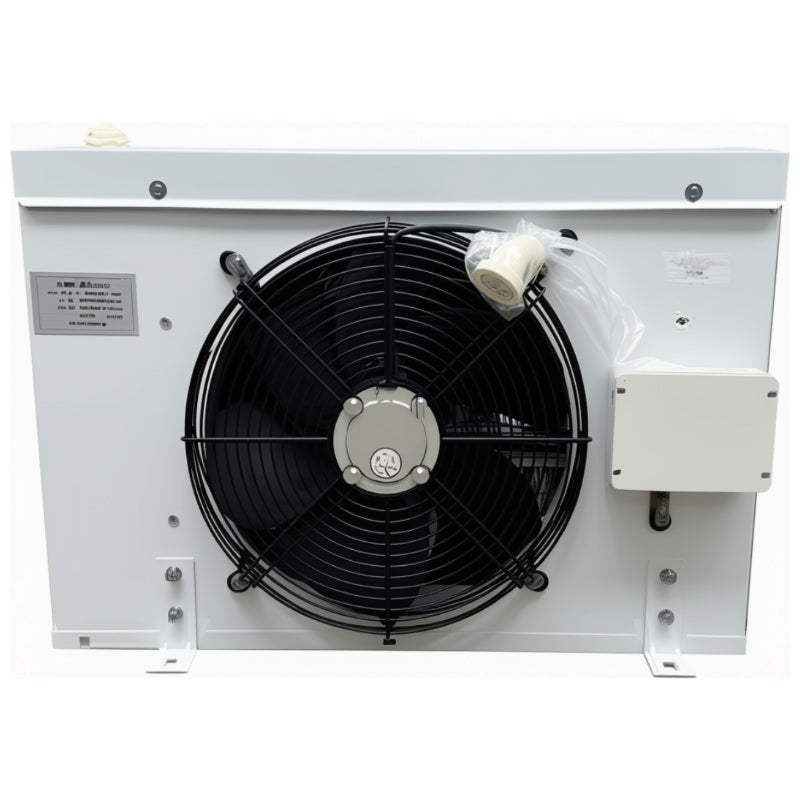

Evaporator Unit 2.5kW (Mid Temp) IDH‑2.5/12

Evaporator Unit 2.5kW (Mid Temp) IDH‑2.5/12

The IDH‑2.5/12 evaporator unit from the ICEAGE IDH Series provides a cooling capacity of 2.5kW and is engineered for mid‑temperature refrigeration applications. With a 350mm axial fan and a 12m² heat exchange surface, it delivers stable cooling performance in commercial cold rooms, food storage, and processing environments.

Features:

• Cooling capacity 2.5kW
• Heat exchange surface area 12m²
• Single 350mm axial fan
• Airflow 1353m³/h
• Fin spacing 4.5mm
• Inlet/outlet pipe size 12mm–14mm
• Defrost heaters (fin and tray)
• Dimensions 780mm × 430mm × 490mm
• Weight 27kg
• Suitable for mid‑temperature cold rooms and food storage applications
